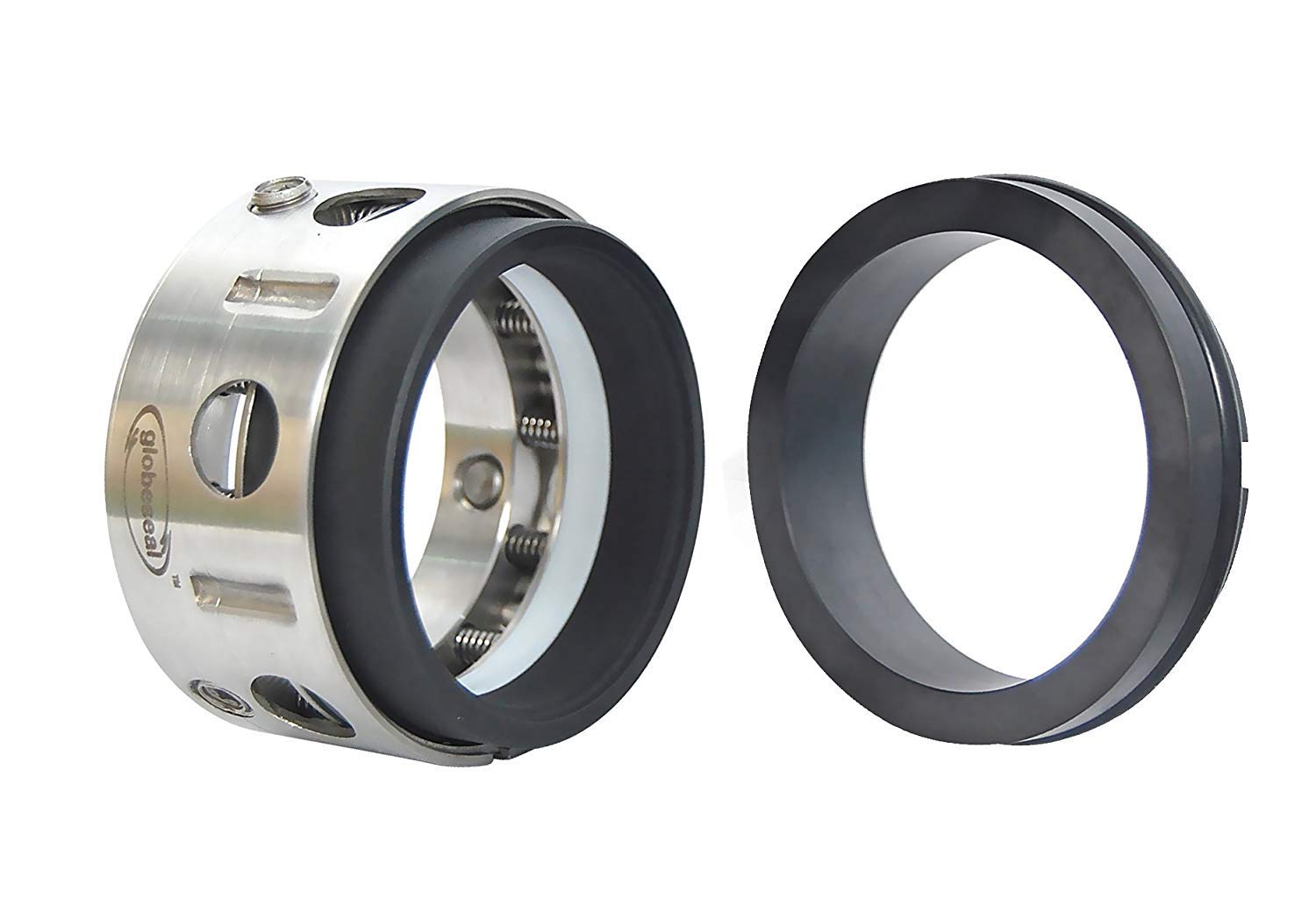

Multi Spring Type Seal that move axially along a shaft or sleeve to maintain contact at the seal faces. The seal
faces are loosely inserted and can be easily ex-changed. The rotary face is shrink fitted in metal shell thereby giving additional advantage of offering both hard faces. Springs are fully immersed in the process fluid, hence do not get clogged because of the centrifugal forces.
Materials
Hardware : SS 316 / Alloy 20 / Hastelloy C
Seal Ring : SiC / TC
Mating Ring : SiC / TC / Carbon
Secondary Seal : PTFE / FEP / TTV / Chemraz / Karlez / FKM
Operating Limit
Pressure : Up to 25 bar
Temperature : -20°C to 280°C (Depending on elastomer)
Speed : 4500 RPM
Salient Features
• It enables handling of the abrasives and corrosive liquids.
• It can be easily install by non-skilled person.
• It provides excellent sealing performance and extend seal life.
Marck engineers was established in the year 2000 in Ahmedabad, India with sole aim to provide high quality products to various Industries. We have been scaling new heights of success in our business endeavors.
