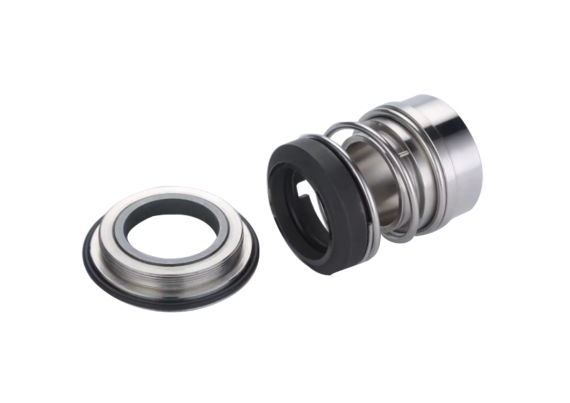

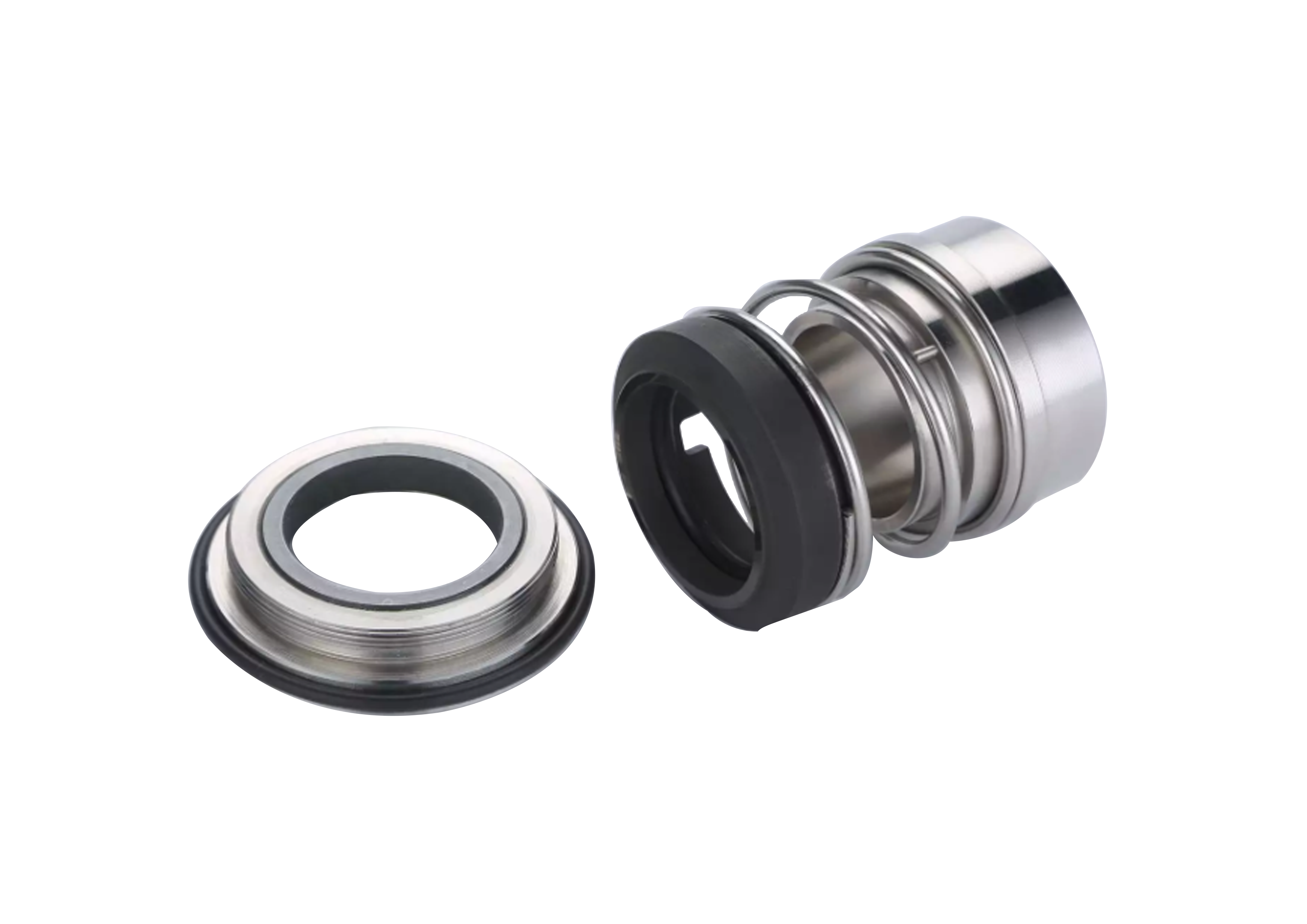

Single Spring Seal is more suitable for application where crystallizing solution are handled. It is simple in construction and easy to install. Due to its unique positive drive lug it’s direction rotates independently. These seals are simple, reliable & rugged enough for the clogging type application.
Materials
Hardware : SS 316 / SS 304 / Alloy 20 / Hastelloy C
Seal Ring : Carbon / SiC / TC
Mating Ring : SiC / Ceramic / TC
Secondary Seal : PTFE / TTV / FKM / NBR / EPR
Operating Limit
Pressure : Upto 16 kg/cm²
Temperature : -20°C to 280°C (Depending on elastomer)
Speed : 4500 RPM
Salient Features
• High performance.
• Low maintenance cost.
• Easy to install.
